DIY under-body protection/sliders

Discussion in 'Bamboo GT' started by Nickelberry, Dec 16, 2016.

More threads by Nickelberry
  1. Nickelberry

    Nickelberry Member

    Joined:
    Oct 16, 2016
    Messages:
    310
    Likes Received:
    232
    Location:
    Bunbury, Western Australia, Australia
    Real Name:
    Nick
    Boards Owned:
    Bamboo GT
    Wheel Setup:
    All Terrain (AT)
    Map
    Hey Guys and Girls,

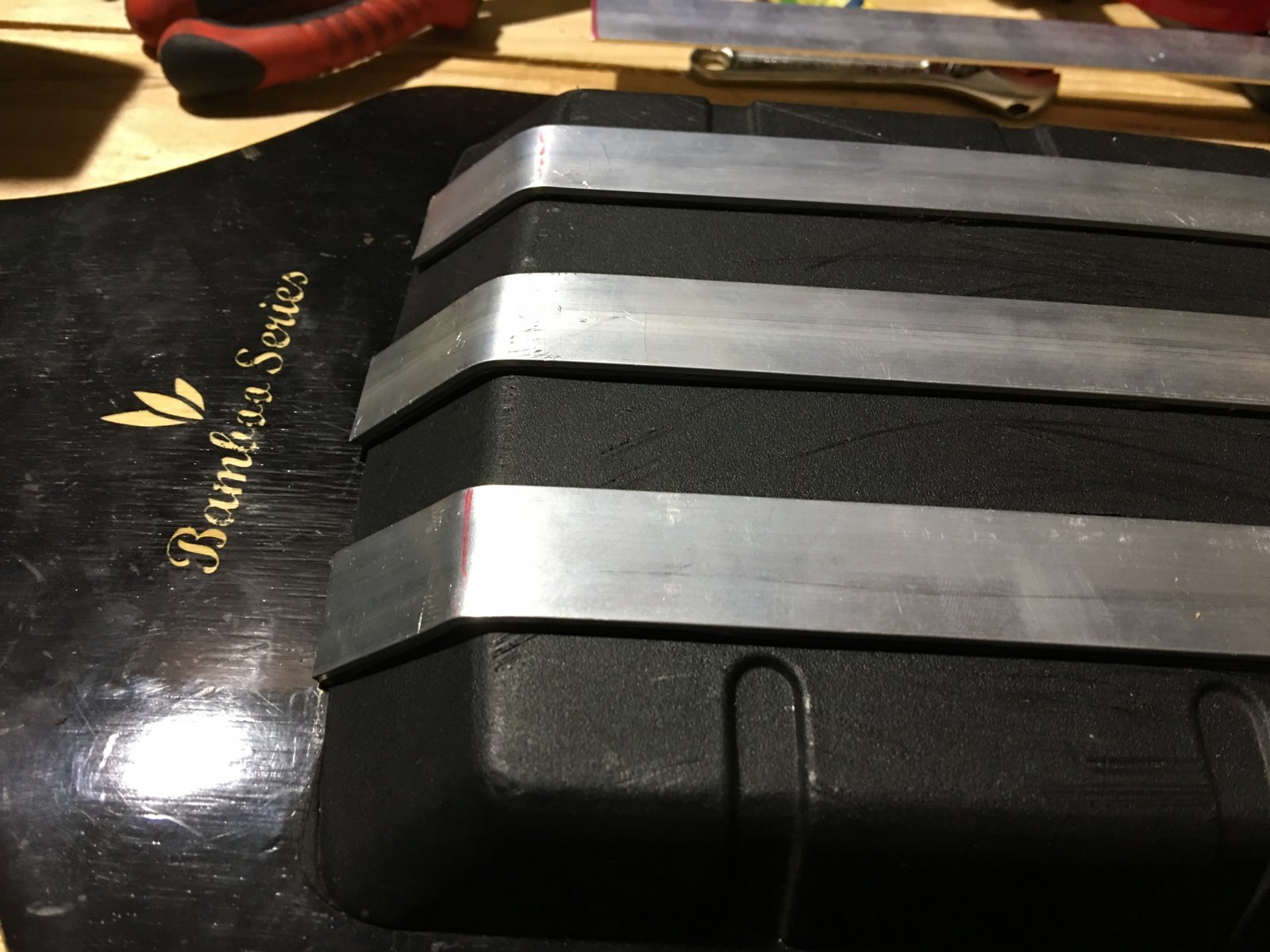

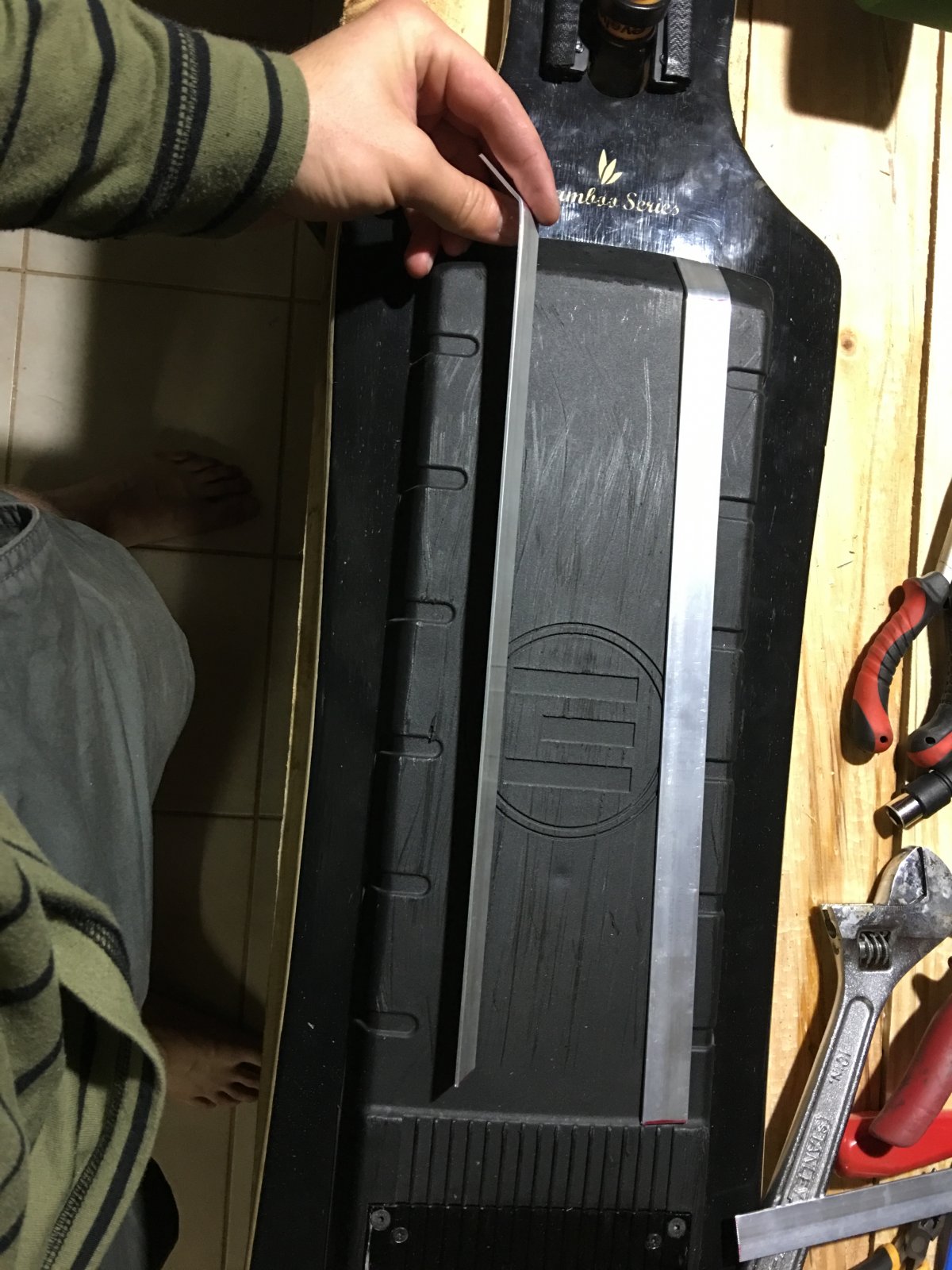

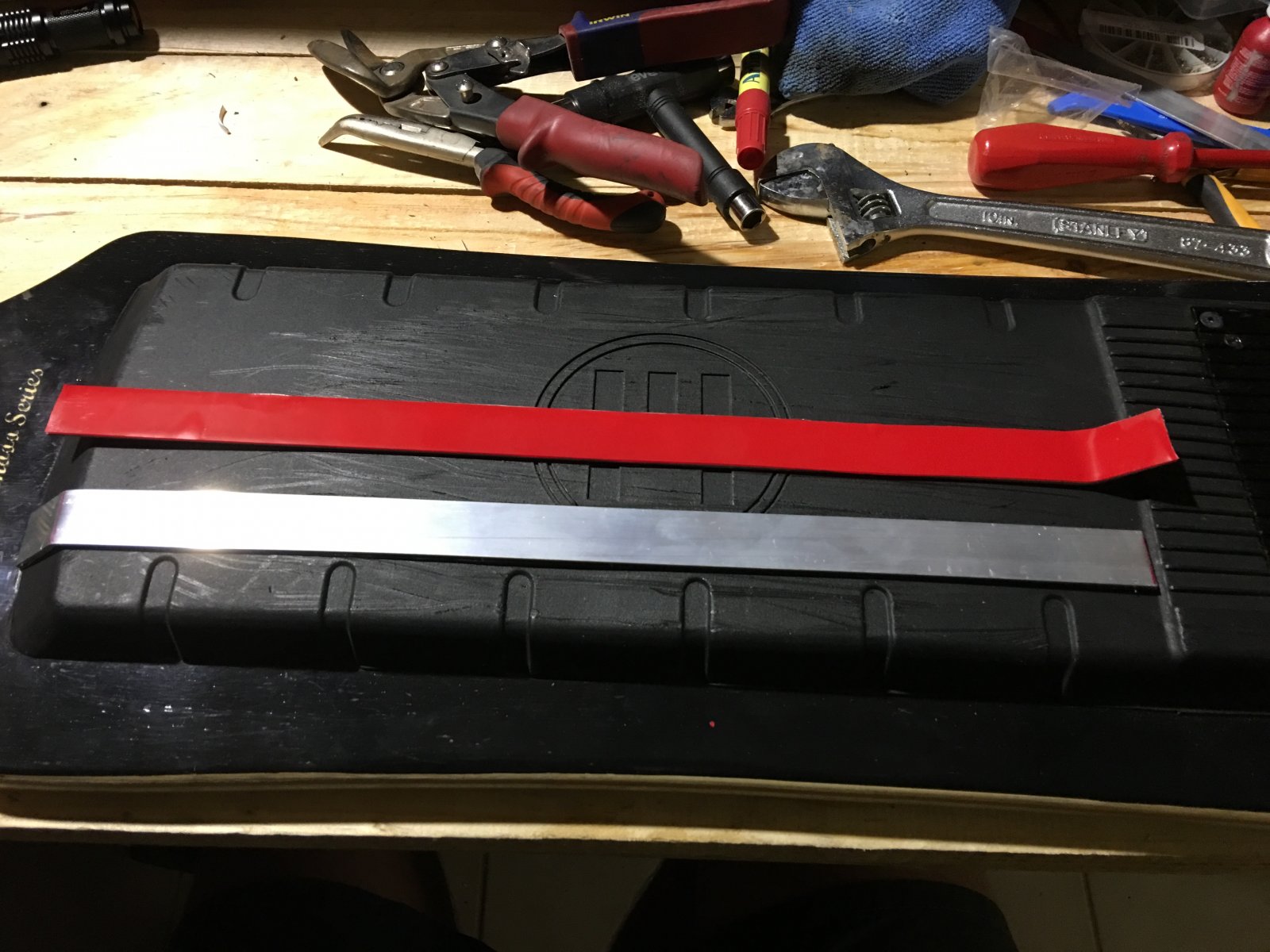

    I was getting pretty sick of scraping my battery pack against curbs so I went down to my local hardware store and picked up some thin strips of aluminium (20mm wide) and some super strong "industrial strength" double sided tape. I then cut the aluminium and bent the front of it to match the front of the case. I ended up using three strips all up, I think that should give me heaps of protection. I went with think aluminium as it should flex with the board. Its not super pretty but I think it should work pretty well.

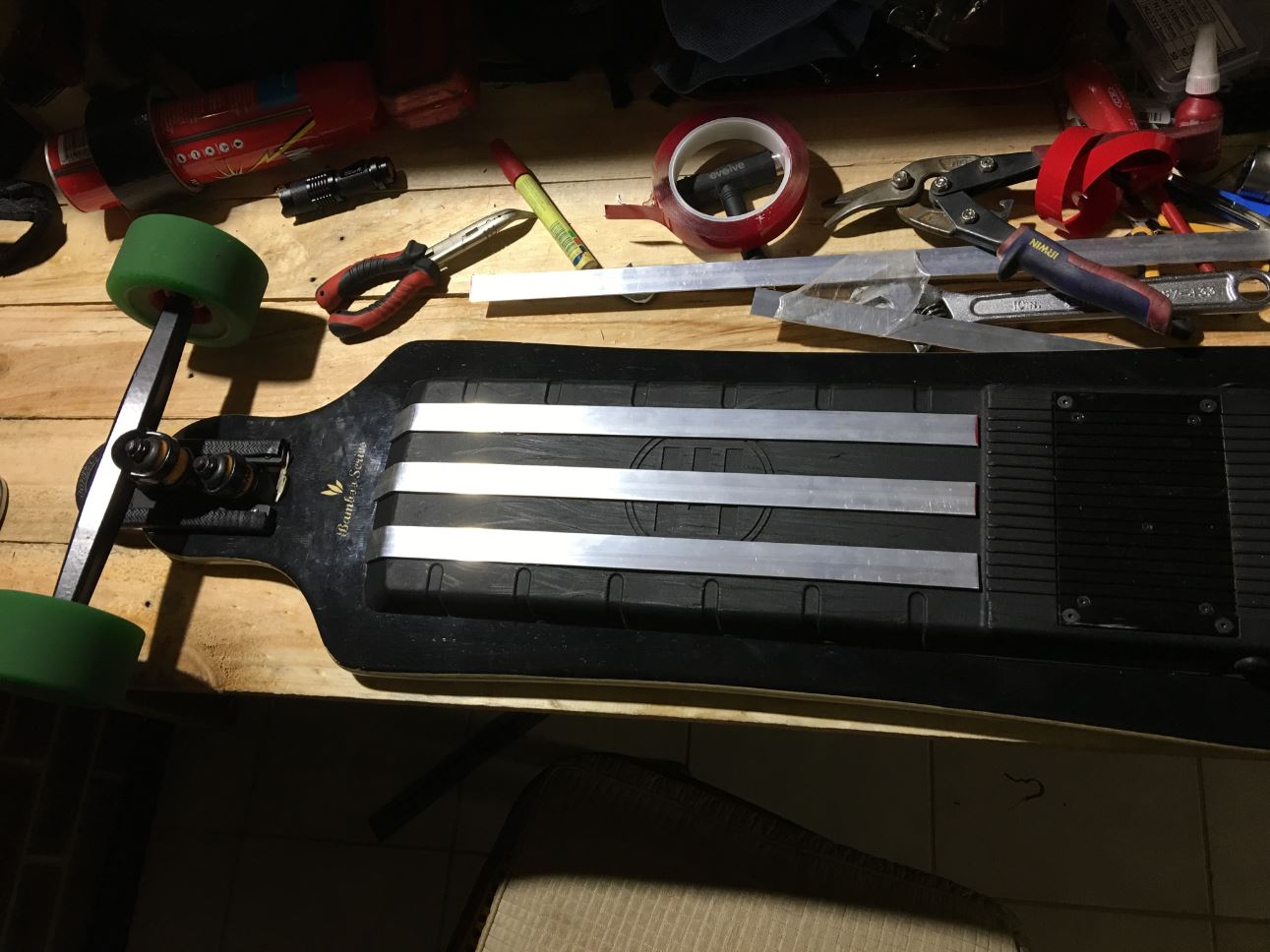

    Capture.JPG .

    Last edited: Dec 16, 2016
    • Like Like x 8
    • Love Love x 1
    • Winner Winner x 1
    • Useful Useful x 1
  2. Alex

    Alex Admin

    Joined:
    Sep 9, 2016
    Messages:
    1,554
    Likes Received:
    967
    Location:
    Barnes, London, United Kingdom
    Real Name:
    Alex Jermstad
    Boards Owned:
    Carbon
    Wheel Setup:
    All Terrain (AT)
    Map
    Very cool man. I'm waiting for Nickelberry's Custom E-Board Shop 'O Mods to open up, you're full of good ideas.

    I have to say I've not had much issue with curbs myself though. Do you ride straight off the edge of raised sidewalk curves often? As opposed to finding a smooth lips to connect to the road?

    • Like Like x 1
  3. OP
    Nickelberry

    Nickelberry Member

    Joined:
    Oct 16, 2016
    Messages:
    310
    Likes Received:
    232
    Location:
    Bunbury, Western Australia, Australia
    Real Name:
    Nick
    Boards Owned:
    Bamboo GT
    Wheel Setup:
    All Terrain (AT)
    Map
    Sorry Alex I somehow missed your question, yeah we don't always have nice smooth entrances into roads around hear, so I end up pushing the limits and scraping my board pretty often.

    • Like Like x 1
  4. OP
    Nickelberry

    Nickelberry Member

    Joined:
    Oct 16, 2016
    Messages:
    310
    Likes Received:
    232
    Location:
    Bunbury, Western Australia, Australia
    Real Name:
    Nick
    Boards Owned:
    Bamboo GT
    Wheel Setup:
    All Terrain (AT)
    Map
    UPDATE
    After using these for the last couple weeks I must say i really like them. Because the aluminium is pretty tough when I do hit a kerb I tend to slide over it. Before I had installed the sliders the plastic would hit the kerb which would pull me up pretty quick.

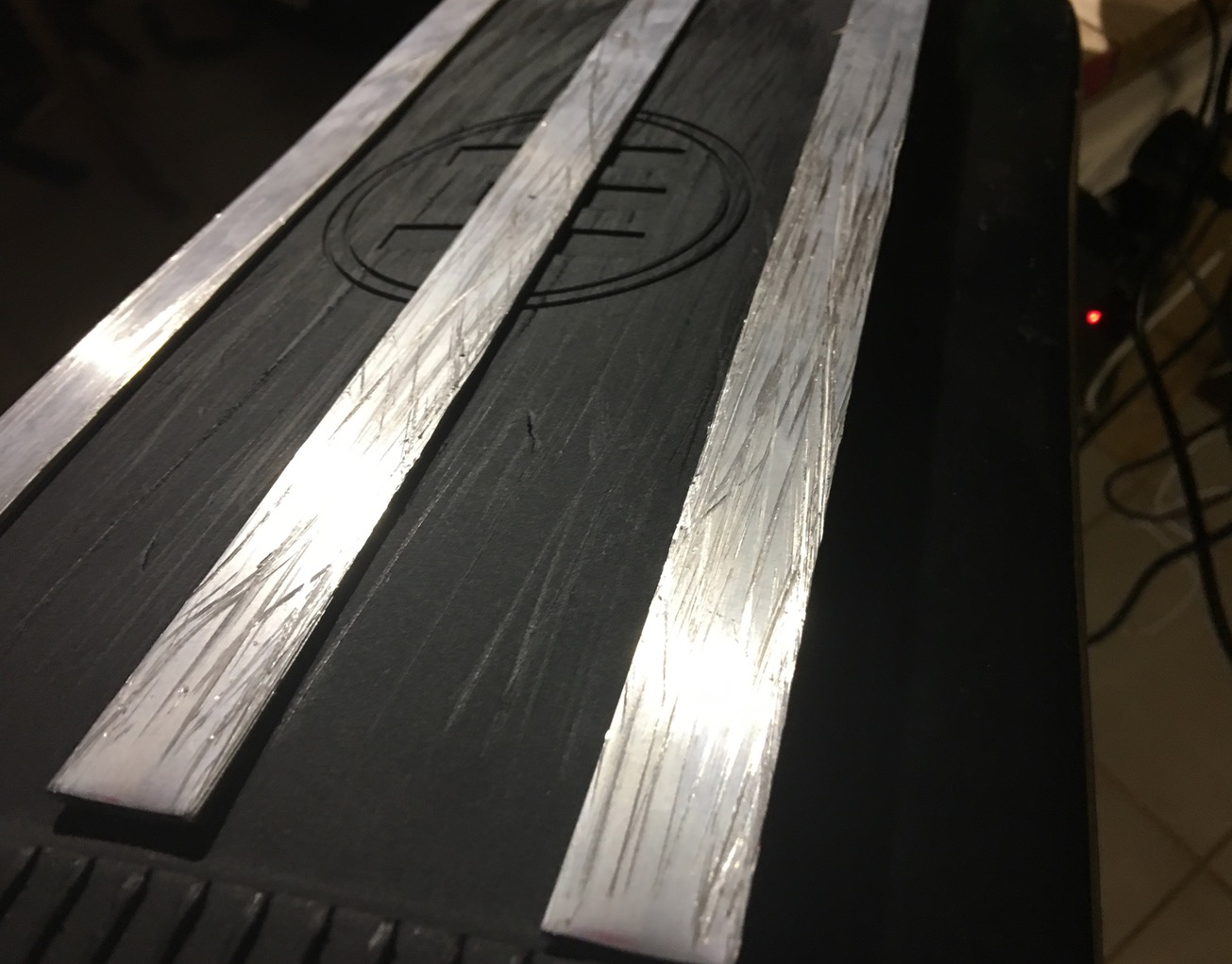

    I have made one modification which was to move the outside sliders to the edge of the battery case to protect the motor controller bulge. Screen Shot 2017-01-15 at 10.01.37 pm.JPG

    • Cool! Cool! x 2
    • Like Like x 1
    • Useful Useful x 1
  5. Andrew_Gen2Bamboo

    Andrew_Gen2Bamboo Member

    Joined:
    Mar 6, 2017
    Messages:
    104
    Likes Received:
    54
    Location:
    Perth, Western Australia, Australia
    Real Name:
    Andrew
    Boards Owned:
    Carbon
    Wheel Setup:
    Street
    Map

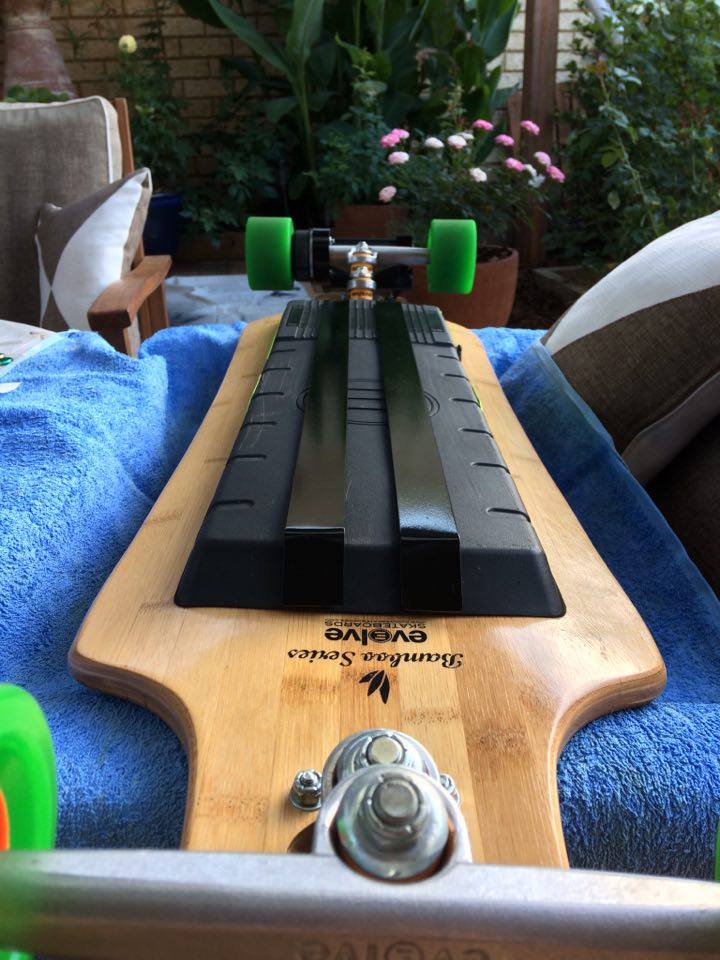

    Definitely would have been better if I'd done this 'before' the bottom got a few scratches.

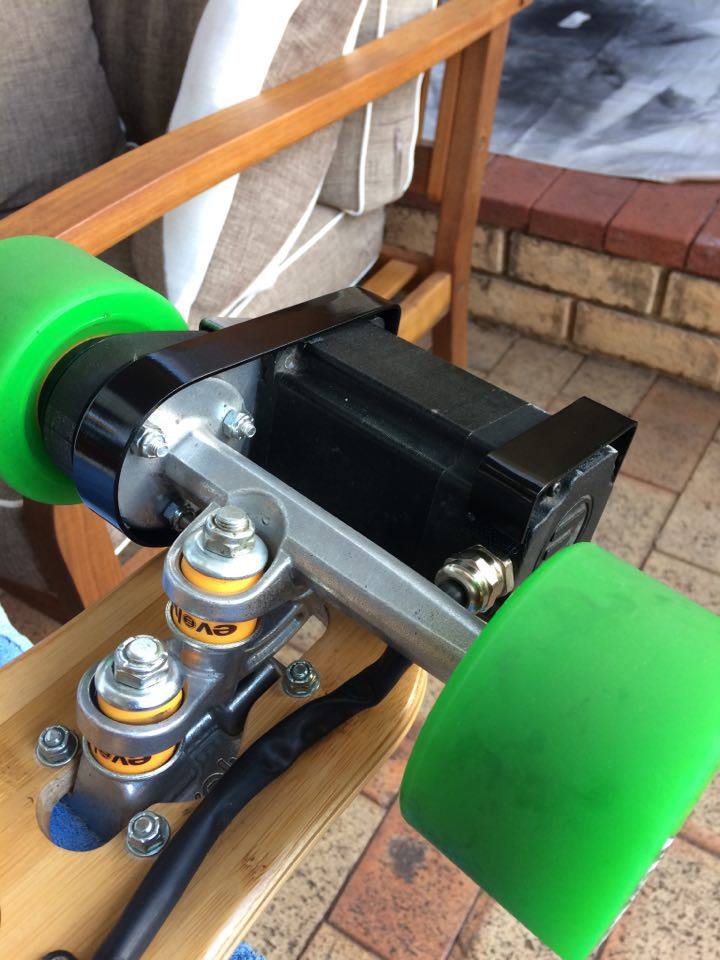

    Made a couple of motor bumpers also, but will see how they go for rattle.. might not be worth the hassle. But the trucks/motor arm is quite soft metal for what it is.

    17198098_10155135083814365_2108395018_n.jpg 17198557_10155135084014365_1856616554_n.jpg

    • Like Like x 4
  6. Andrew_Gen2Bamboo

    Andrew_Gen2Bamboo Member

    Joined:
    Mar 6, 2017
    Messages:
    104
    Likes Received:
    54
    Location:
    Perth, Western Australia, Australia
    Real Name:
    Andrew
    Boards Owned:
    Carbon
    Wheel Setup:
    Street
    Map

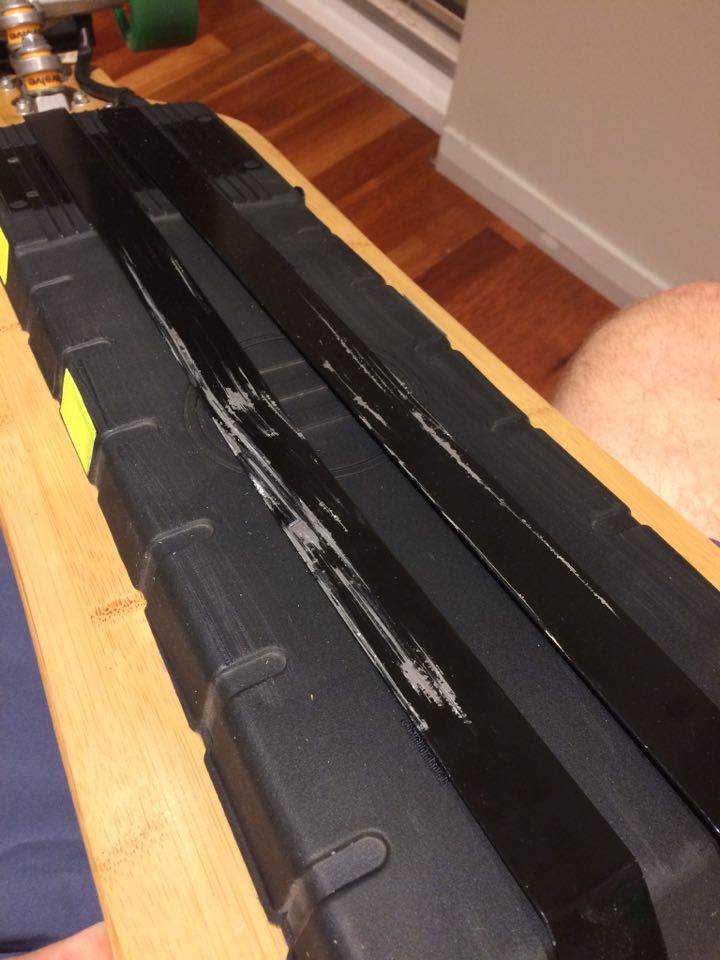

    So glad I sanded, primed and glossed these! :p

    Can confirm from Nick's initial guards:
    - 3 required, I'll move mine to the outside and put a new one down the middle,
    - Velcro doesn't cut the mustard, I'll have to double-sided tape them,
    - Painting is useless,

    But from my own take on things, I'm liking the full length.


    • Like Like x 1
  7. OP
    Nickelberry

    Nickelberry Member

    Joined:
    Oct 16, 2016
    Messages:
    310
    Likes Received:
    232
    Location:
    Bunbury, Western Australia, Australia
    Real Name:
    Nick
    Boards Owned:
    Bamboo GT
    Wheel Setup:
    All Terrain (AT)
    Map
    Yeah I like how yours are full length.... I may need to remake mine at some point.

  8. Andrew_Gen2Bamboo

    Andrew_Gen2Bamboo Member

    Joined:
    Mar 6, 2017
    Messages:
    104
    Likes Received:
    54
    Location:
    Perth, Western Australia, Australia
    Real Name:
    Andrew
    Boards Owned:
    Carbon
    Wheel Setup:
    Street
    Map
    Cody went with full length and a bend / chamfer on the back of the battery too.. might help to keep it stuck on. Double sided tape a must, I had a few 'dragging metal' moments.

    Solution might just be to fly off kerbs at speed.. something will be getting scraped up by the road that's for sure.

    • Like Like x 1
  9. dronus

    dronus Member

    Joined:
    Feb 1, 2017
    Messages:
    83
    Likes Received:
    42
    Location:
    Adelaide, South Australia, AU
    Real Name:
    Dronus
    Boards Owned:
    Bamboo GT
    Wheel Setup:
    All Terrain (AT)
    Map
    Cool idea and it looks like it works!

    Just a question regarding the remote signal. Have you had any issues that could be attributed to the aluminium being in the vicinity of the motor control board?

  10. Andrew_Gen2Bamboo

    Andrew_Gen2Bamboo Member

    Joined:
    Mar 6, 2017
    Messages:
    104
    Likes Received:
    54
    Location:
    Perth, Western Australia, Australia
    Real Name:
    Andrew
    Boards Owned:
    Carbon
    Wheel Setup:
    Street
    Map
    I haven't (after 2 rides) but Nick might have more advice? It's not a conductor (and is a poor insulator) so I don't think it would be a problem.

    At our local hardware store (Australia) a 1 metre strip x 25mm wide is $4, really inexpensive option to protect the battery, wish I'd have done it when I first got the board.

  11. OP
    Nickelberry

    Nickelberry Member

    Joined:
    Oct 16, 2016
    Messages:
    310
    Likes Received:
    232
    Location:
    Bunbury, Western Australia, Australia
    Real Name:
    Nick
    Boards Owned:
    Bamboo GT
    Wheel Setup:
    All Terrain (AT)
    Map
    Yeah I haven't had any drop out issues either.

  12. dronus

    dronus Member

    Joined:
    Feb 1, 2017
    Messages:
    83
    Likes Received:
    42
    Location:
    Adelaide, South Australia, AU
    Real Name:
    Dronus
    Boards Owned:
    Bamboo GT
    Wheel Setup:
    All Terrain (AT)
    Map
    Cool no worries thanks

    • Like Like x 1
  13. electricboardlex

    electricboardlex Member

    Joined:
    Feb 21, 2017
    Messages:
    70
    Likes Received:
    39
    Location:
    Lexington, Kentucky, United States
    Real Name:
    EBL
    Boards Owned:
    Bamboo GT
    Wheel Setup:
    Street
    Wheel Size:
    97
    Map
    For anyone interested, this is the 3M double-sided tape he's using


    Most hardware or automotive stores also carry big spools of it too. I've used it before and it's great stuff. It will hold pretty well if you press against it firmly. I've seen it used in all sorts of applications. It can be removed from plastic fairly easily, although you may need to scrape it with a plastic spudger or something to get it completely off. It won't typically damage the plastic, but it will take paint off of a wall

  14. swimmingintoast

    swimmingintoast Member

    Joined:
    Feb 12, 2017
    Messages:
    25
    Likes Received:
    1
    Location:
    Sydney, New South Wales, Australia
    Real Name:
    Jim
    Boards Owned:
    Bamboo GT
    Wheel Setup:
    Street & AT
    Map
    Hey Andrew,
    Do you have any issues with the tape falling off the aluminium strips? At the bottom of the battery, near the controller/ chip, it is 1-2mm raised - just wondering if this affected the grip of the tape in any way. thanks

  15. oskuro

    oskuro Member

    Joined:
    Jun 19, 2017
    Messages:
    40
    Likes Received:
    7
    Location:
    Madrid, Spain
    Real Name:
    Dany
    Boards Owned:
    I don't have one yet :(
    Wheel Setup:
    Street
    Map
    What about covering it with carbon fiber tape if you are not going to be grinding ? Do you recommend it ?

  16. Andrew_Gen2Bamboo

    Andrew_Gen2Bamboo Member

    Joined:
    Mar 6, 2017
    Messages:
    104
    Likes Received:
    54
    Location:
    Perth, Western Australia, Australia
    Real Name:
    Andrew
    Boards Owned:
    Carbon
    Wheel Setup:
    Street
    Map
    I ended up bending mine 'up' and then 'down' to give it a little 2mm rise over the motor controller. So it sits flush
