Circuit board repair/replacement

Discussion in 'Evolve Skateboards' started by SPB, Nov 6, 2023.

More threads by SPB
  1. SPB

    SPB Member

    Hi. This isn't my board I ride one without motors but am handy with electrical/electronics and I'm trying to repair it for a friend.

    It seems like some water ingress may have caused some components to blow on the circuit board, which is strange because we live in southern Portugal where it is pretty dry most of the time and he hasn't used it when it has been wet..

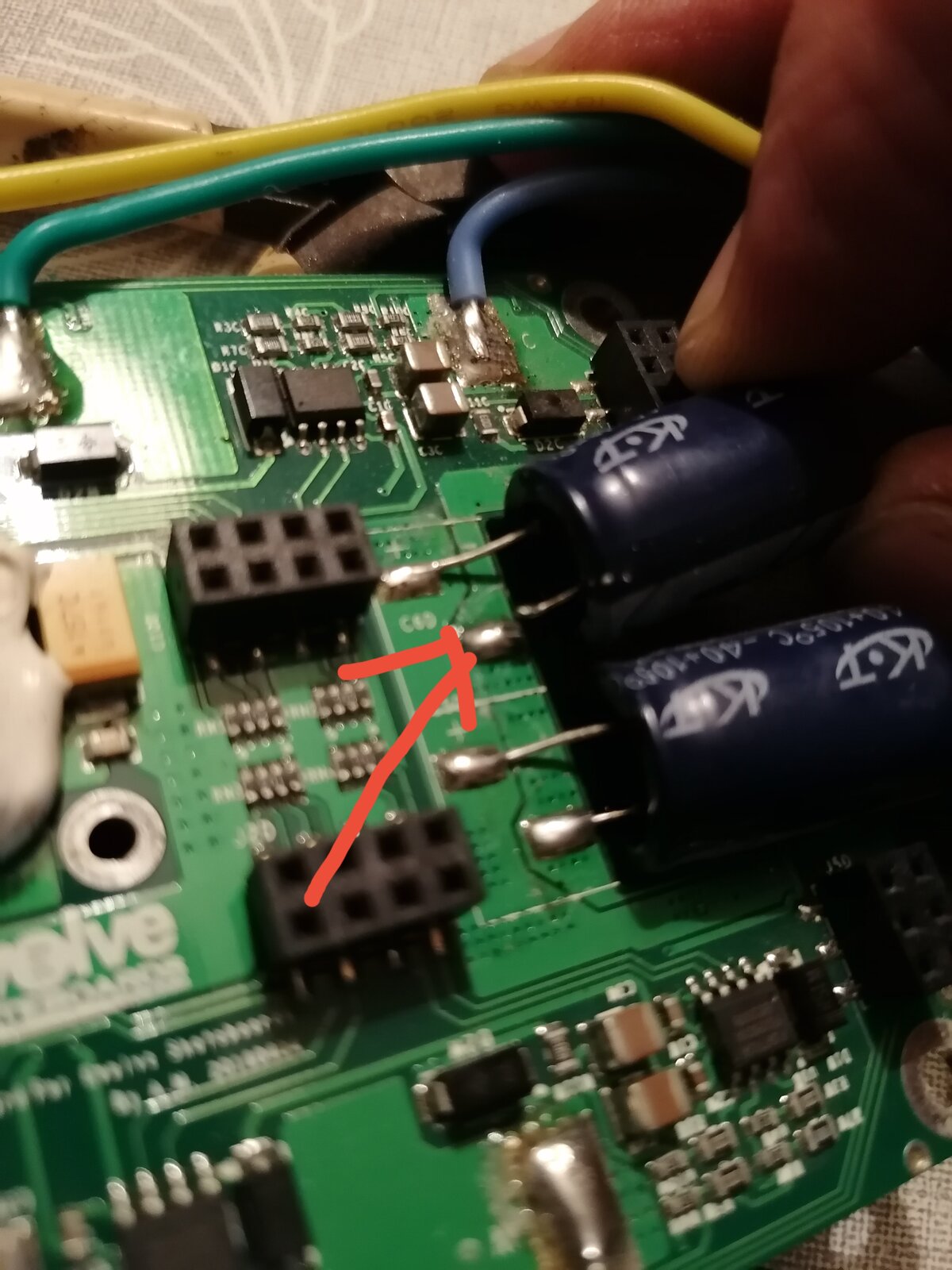

    The first thing I noticed was that three of the large capacitors have broken joints, I thought it was strange they aren't bonded to the pcb but it looked like an easy fix..

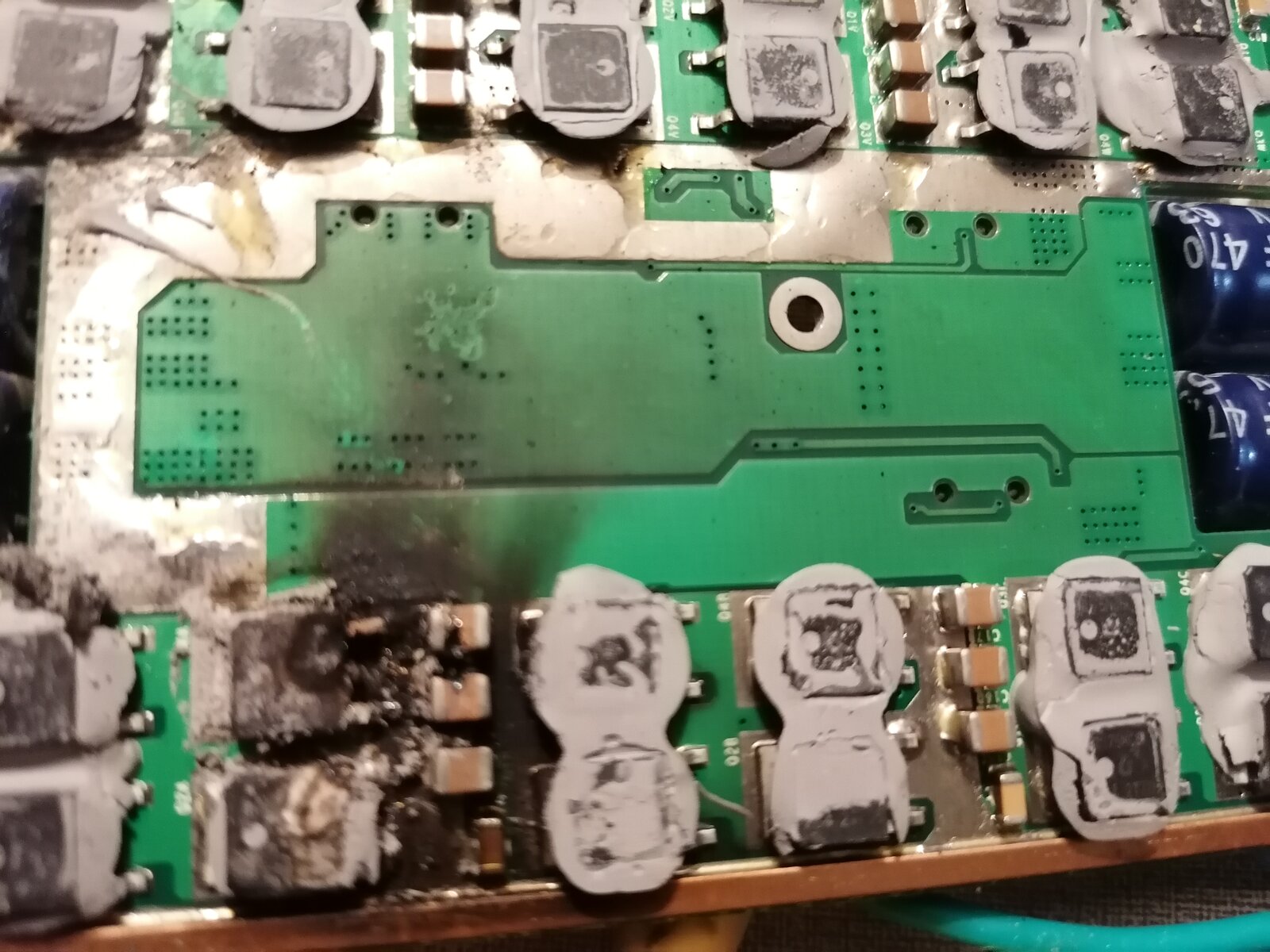

    Upon checking the back of the board it is apparent that a surface mount capacitor has blown and taken another out with it.

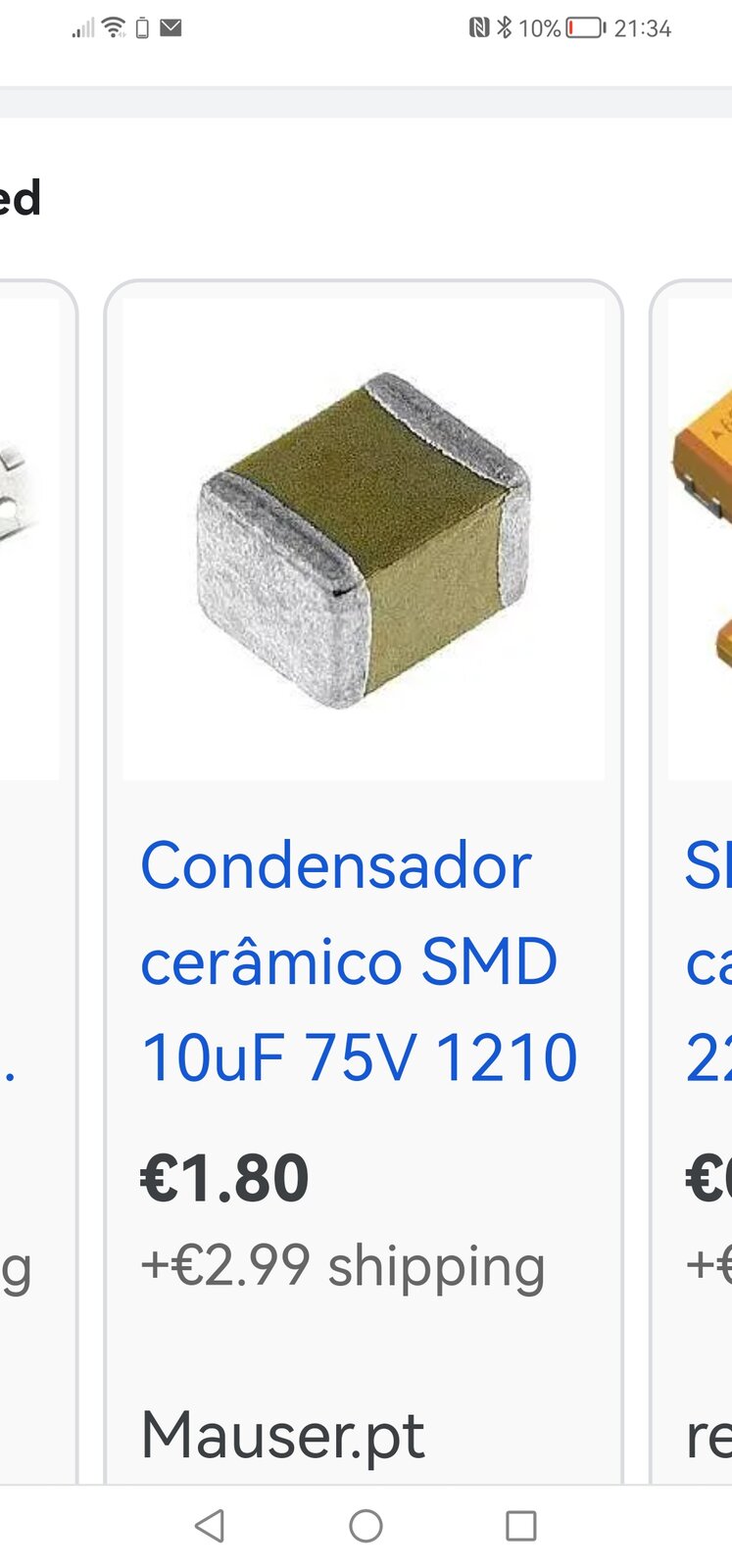

    I think I may have found the right component can anyone confirm it for me or tell me if I'm wasting my time.

    If anyone can help it would be much appreciated.
