Wanted Circuit board details

Discussion in 'Wanted' started by ALLER, Apr 25, 2020.

  1. ALLER

    ALLER Member

    Hi All,

    I am NOT a skateboarder. I am an electronics repairs technician and I have a Client who came to me with a blown circuit boards for his Evolve skateboard. I am simply looking for help from you fellows in identifying some component on the circuit board (it's blown to pieces and I cant read from it). As there is no circuit board number specified on the board and I don't know the skateboard particular Brand (except it's Evolve), I need your help. The component I'm chasing is a tantalum capacitor (could be orange or black rectangular plastic component with a printed/etched band at one end). I am looking for a value written on it. The part designation printed on a circuit board next to it is (most likely - don't have the whole thing) C10D.

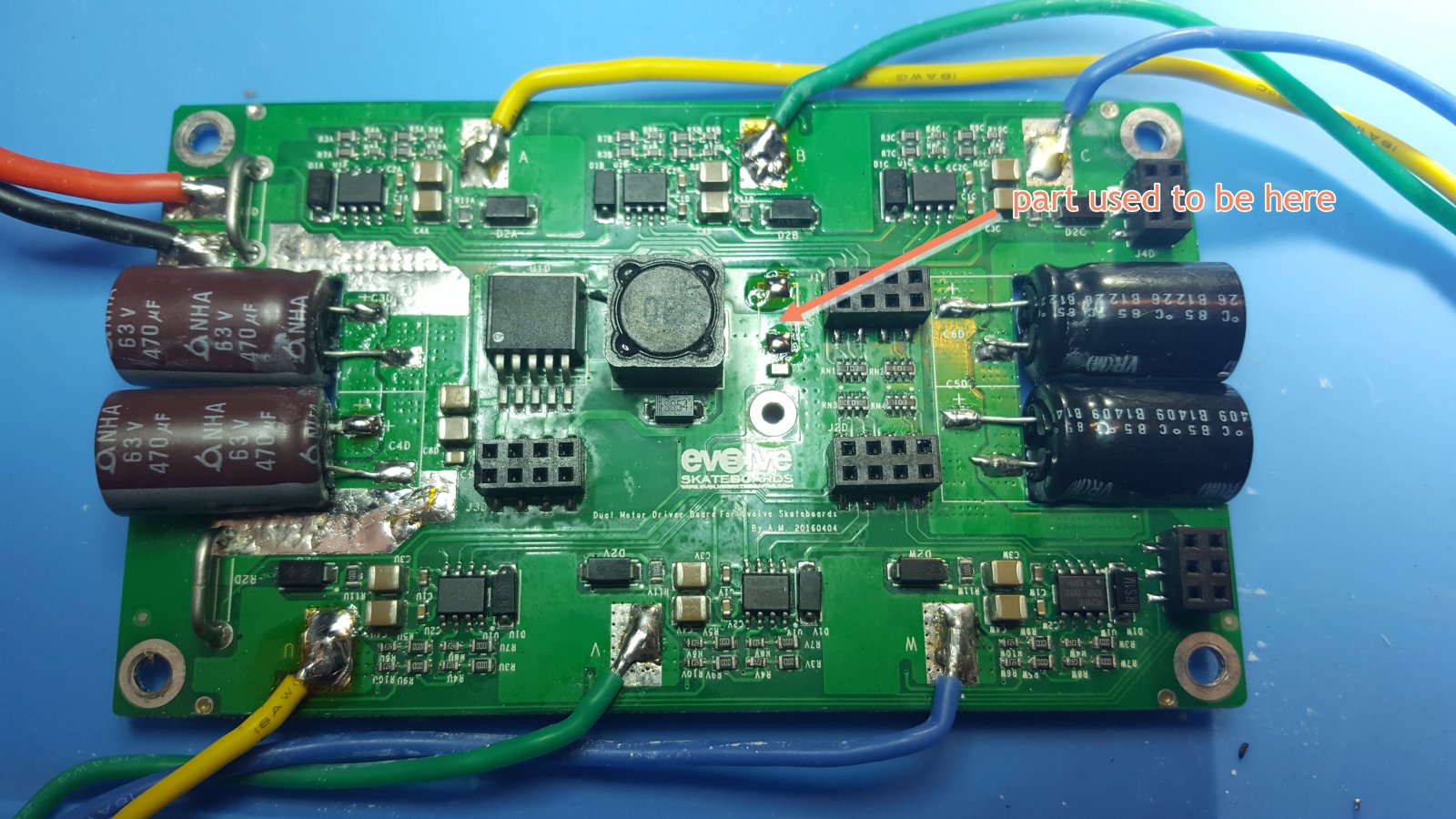

    The circuit board is a Dual Motor Driver board (see picture below)

    Thank you in advance

    Jerry

    dual motor driver board-edited.jpg

  2. Louis. F

    Louis. F Member

    • Like Like x 1
  3. fastrider

    fastrider Member

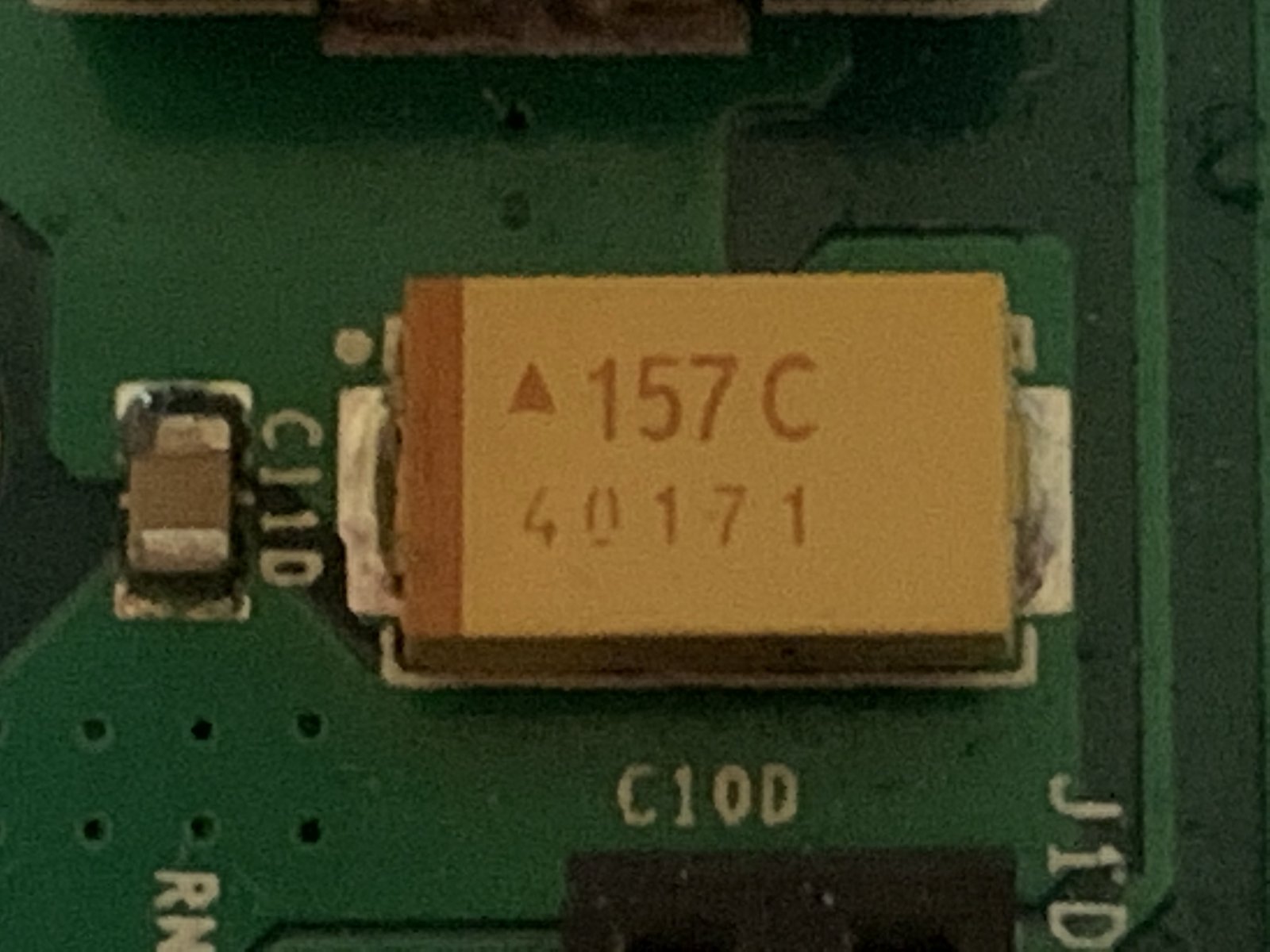

    It's a 157pF 16V tantalum capacitor. The ID code of the original component is 40171. Same as on the top PCB.
    ▲157C
    40171

    EDIT:

    Last edited: Apr 25, 2020
    • Like Like x 2
    • Love Love x 1
  4. OP
    ALLER

    ALLER Member

    Thank you so very much.

    • Like Like x 3
  5. xrayturner

    xrayturner Member

    Aller,

    I didn't see this post before I responded to your other one, glad it all worked out.
